With all of the essential features and quality accessories you come to expect from B&D, Controll-A-Door® Secure offers exceptional value. It's no secret that the products from B&D Garage doors are some of the nicest on the market.
Bolster your home security with the new Safe Lock anti-tamper system that locks your garage door if an intruder tries to lift it. Combine this with a super-fast opening speed and bright LED courtesy light to illuminate your garage, and it€™s clear that Controll-A-Door® Secure is the sensible choice to automate your garage door. Controll-A-Door® Secure is backed by B&D Doors market leading 7 Year/20,000 Cycle warranty.
Features:
Tri-Tran+ Premium Accessory Kit

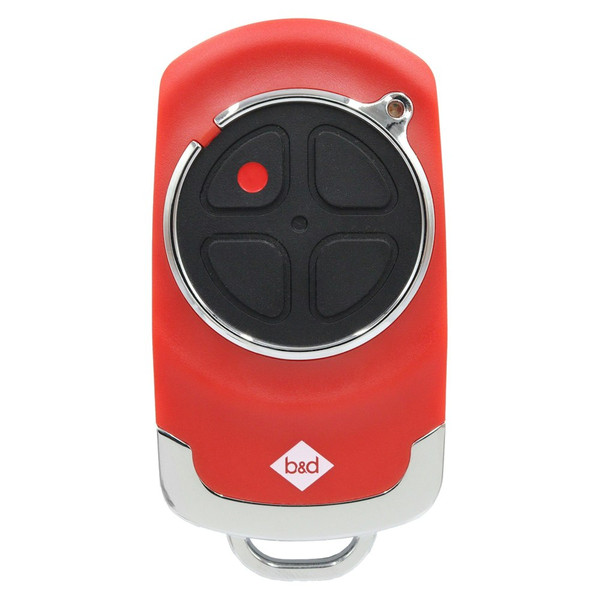

Includes two TB-6 remotes and one wireless wall button to provide superior security and excellent operating range whilst virtually eliminating interference from other wireless devices.
Built-in Auto Reverse Technology
The door automatically reverses if it comes into contact with an obstruction whilst in motion.
Safe Lock System
Prevents intruders from gaining unauthorised access into the garage.
Super Fast Opening
The B&D Secure SDO-6 has unparalleled speed for openers of it's type, something B&D Garage door products are known for.
Bright LED Courtesy Light
Ultra bright LED's which illuminate when the door is in operation to light up your garage to make entering and exiting easier than ever.
Quiet DC Motor
The integrated DC motor coupled with a belt driven rail will provide one of the quietest operations on the market.
Heavy Lifting Capacity
Suits both single and double sized sectional garage doors up to 235KG.
Remotes Included: 2 (TB6)
Included:
1 x B&D Secure SDO-6 drive unit
1 x Wall mount transmitter
2 x Transmitters
1 x Bent arm door attachment
1 x Straight arm door attachment
1 x Wall bracket TS01
1 x Door bracket Locator
1 x Door bracket
3 x Pin Snap SSP 8 ZNU 31080
2 x Hex Head screw M8x25
1 x Pin 0890
2 x Clevis Pin 0829
2 x Hex Serration flange nut M8
4 x Hex flange screw €˜S€™ M4 x 10
Please Note: This item does not include the rail
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
Specifications:
Rated voltage range:
230V - 240Va.c.
Rated frequency:
50Hz / 60Hz
Rated power input:
165W
Maximum Door Area:
18m2
Maximum Door Weight:
236kg*
Minimum headroom:
57mm
Rated Operating Time:
4 mins
Rated Temp:
+5 C to +40 C
Short Term Peak force:
1100N
Door travel speed (mm/sec):
180mm
Rated load:
400N
Nominal force:
200N (20kg)
Receiver type:
Multi-frequency UHF FM
Receiver code storage capacity:
64 X 4-button Transmitters
Transmitter battery:
CR2032 (3 Volts)
Courtesy light:
LED (Light Emitting Diodes)
Network connectivity:
Network ready (requires optional smart phone control kit)
