The next generation of gate openers has arrived. The NeoSlider 500  delivers increased gate weight capacity and will operate the majority of residential sliding gates in Australia.






NeoSlider 500 is perfect for residential gates up to a weight of 500kg and a width of 6m. This powerful unit will operate the majority of residential gates in Australia.

This powerful unit combines clever electronics and robust mechanics to make residential sliding gate automation simple and secure. Featuring a variety of operating modes, custom settings, numerous inputs to interface with devices such as intercoms, and a service indicator.

Smart Phone Control is available as an upgrade option. This innovative feature allows you to control and monitor your gate remotely from your smartphone - from anywhere as long as wifi is within range.

Also offering a wide range of accessories to choose from, such as safety beams for to ensure the gate does not close if there is something in the way, backlit digital keypads for added convenience and secure access, battery back up.



Includes ATA Neoslider NES-500 Sliding Gate Motor:

1 x ATA NES500 Gate Opener/Motor

2 x PTX-5v2 Remotes

2 x Metal Feet

1 x Metal Plate

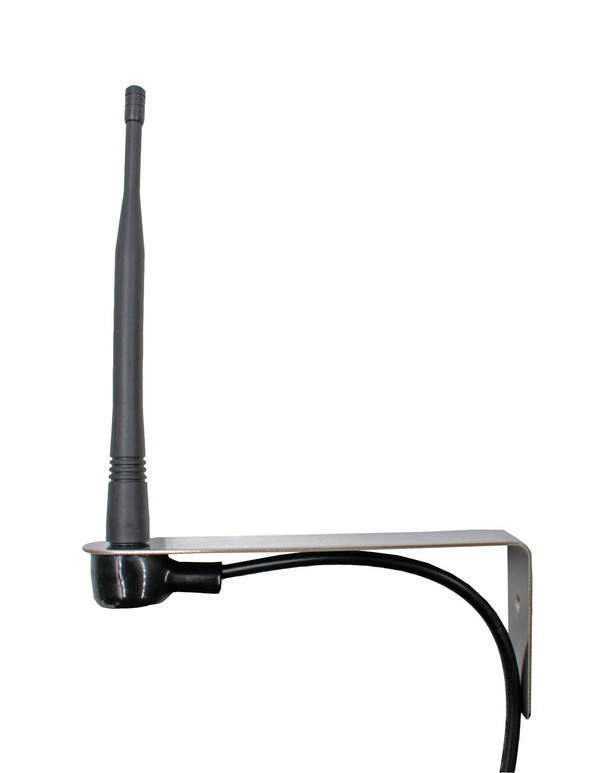

1 x Wired External Antenna

1 x Screw & Bolt Kit

1 x Instruction Manual









Please note the gear rack is not included and can be purchased in 1m lengths by clicking here.

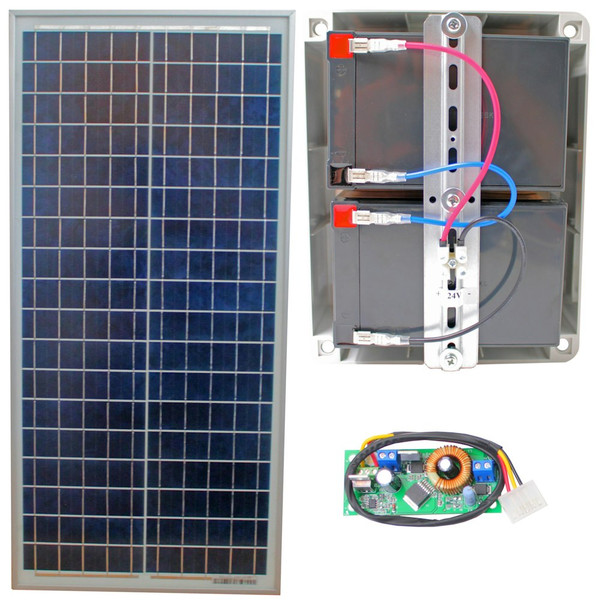

Includes ATA Smart Solar Power Gate/Garage System:
1 x Solar Panel - 30 WATT STP030-12/Lb

1 x Battery Pack (2 X 12 Ah) - Includes Weatherproof Box

1 x Charger Board (With Harness)

1 x Accessory Pack

1 x Installation Instructions



Warranty Disclaimer


Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual






NES-500 Specifications






Kit Type
Residential






Maximum gate weight






Up to 500 kg






Maximum gate width






6 m






Driving force






280 N






Power Supply Voltage






230 “ 240 Vac 50Hz






Standby power






2.8W






Travel speed






0.2m / second






Operating ambient temperature






-20° to +50°C






Dimensions (w x h x d)






275mm H x 250mm W x 170mm D






Weather resistance rating






IP44






Motor type






24 DC Permanent Magnet






Limit switch type






Mechanical






Type of pinion






M4-T14






No. of Safety Beam Inputs
2






Transmitter storage capacity






30 x 4 button Transmitter






Warranty*






2 years / 5,000 cycles










Smart Solar Specifications

SmartSolarV2 Technical Specifications*

Garage Door
Sliding Gate

Swing Gate

Load Voltage

24
24
24

Load Continuous Current

3 - 5A

5A

5 - 10A

Number of Cycles per Day

10
10
10

Average Cycle Time (Opening and Closing)

40 seconds

90 seconds

72 seconds


Max. Standby Current


Without P.E. Beams


With P.E. Beams


With 2 x P.E. Beams





100mA


180mA


-





100mA


180mA


-





100mA


180mA


260mA


Average total consumption current per day


Without P.E. Beams


With P.E. Beams


With 2 x P.E. Beams





2.75 - 3Ah


4.66 - 4.8Ah


-





3.7Ah


5.55Ah


-








3.4 - 4.4Ah


5.31 - 6.3Ah


7.23 - 8.23Ah


Average total consumption current per hour


Without P.E. Beams


With P.E. Beams


With 2 x P.E. Beams





0.11 - 0.13A


0.194 - 0.2A


-


0.16A


0.23A


-





0.14 - 0.18A


0.22 - 0.26A


0.3 - 0.343A


Recommended storage battery capacity / voltage

10.5Ah/24v

12Ah/24V

12 - 18Ah/24V

Wire Gauge and Length from Battery to Charger board (max)

18AWG, 3m

18AWG, 3m

18AWG, 3m

Solar panel average rated output generation time per day (winter months)

4 hours

4 hours

4 hours

Solar Panel Output voltage / current

18V / 1.19A

18V / 1.75A

18V / 1.75A
